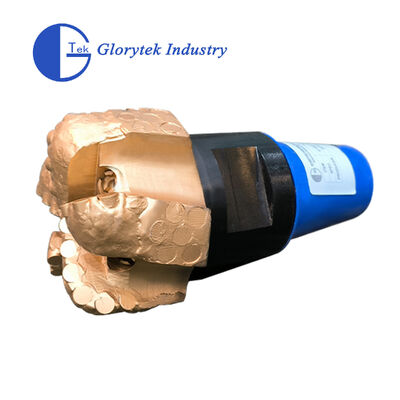

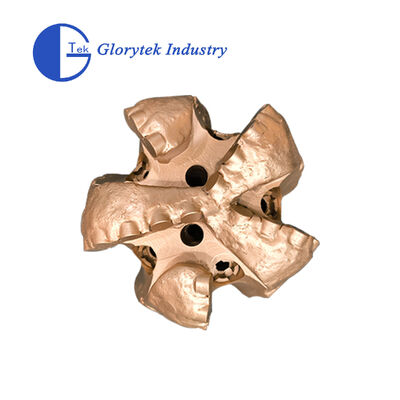

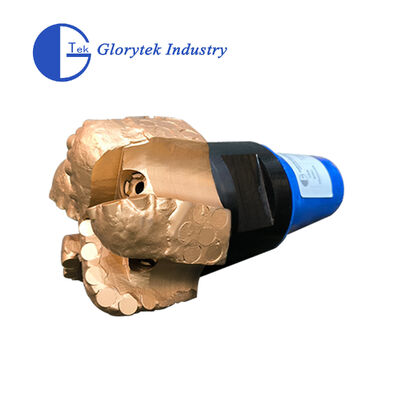

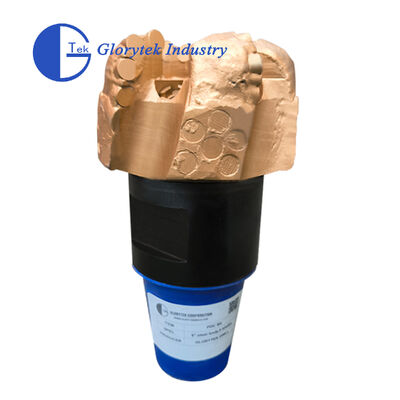

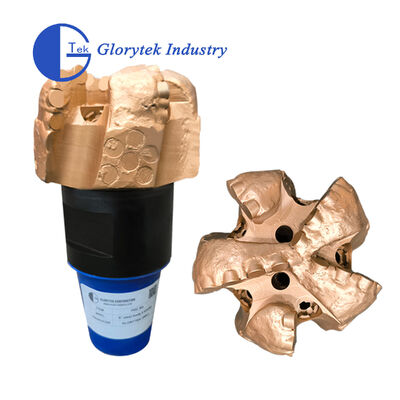

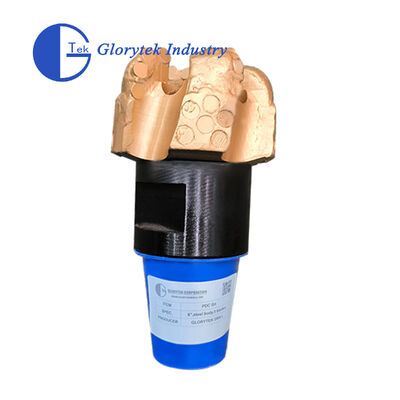

PDC drill bits are advanced drilling tools used in the oil and gas industry to penetrate challenging rock formations. These bits feature a cutting structure with synthetic diamond inserts called polycrystalline diamond compact (PDC) cutters, offering exceptional stability and directional control capabilities, making them ideal for directional drilling applications.
| Bit Type | 6" | 8-1/2" | 8-1/2" | 12-1/4" | Bit Type | 17-1/2" GM1606T |
|---|---|---|---|---|---|---|
| IADC Code | M423 | M432 | M332 | M323 | IADC Code | M432 M332 |
| Blade | 5 | 6 | 8 | 6 | Blade | 6 |
| Cutter Size (mm) | Φ13MM | Φ16MM | Φ13MM | Φ16MM | Cutter Size (mm) | Φ16MM;Φ13MM |
| Nozzle Qty/Type | 5 | 13.2 | 9.6 | 30.78 | Cutter Qty | Φ16*58;Φ13*81 |
| Nozzle Qty/Type | 3NZ | 6NZ | 4NZ | 6NZ | Nozzle Qty/Type | 8NZ |
| Gauge Length | 1.5" | 2.2" | 2" | 2.5" | Gauge Length (mm) | 110 |
| Connection | 3-1/2" API REG | 4-1/2" API REG | 4-1/2" API REG | 6-5/8" API REG | Connection | 7-5/8" API REG |
| Make up Torque(KN.m) | 10.4~11.4 | 24.1~26.5 | 24.1~26.5 | 51.7~56.9 | N.W./ G.W.(KG) | 338/388 |
| Rotary Speed(rpm) | 60-260 | 60-260 | 60-260 | 60-260 | Nozzle Size (inch) | 10/32 |
| Weight on Bit(KN) | 8-50 | 20-100 | 20-100 | 30-140 | Rotary Speed(Rpm) | 60-260 |
| Max.WOB(KN) | 90 | 130 | 130 | 180 | Weight On Bit(KN) | 30-200 |
| Flow Rate(lps) | 10-30 | 22-35 | 22-35 | 38-70 | Max.WOB (KN) | 240 |
| Flow Rate(lps) | 45-80 |
Glorytek Industry (Beijing) Co., Ltd, located in Beijing, China, is an integrated corporation specializing in manufacturing and exporting top-quality drilling equipment and drilling parts for decades. We are supported by a highly experienced team of designers and engineers that enable us to successfully complete all assigned projects according to our clients' specific requirements.
Our products are widely used in mining, water well drilling and exploration, anchor grouting projects, slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations for seaport channels, hydropower projects, and national defense projects.
