ROCK DRILLING RIG

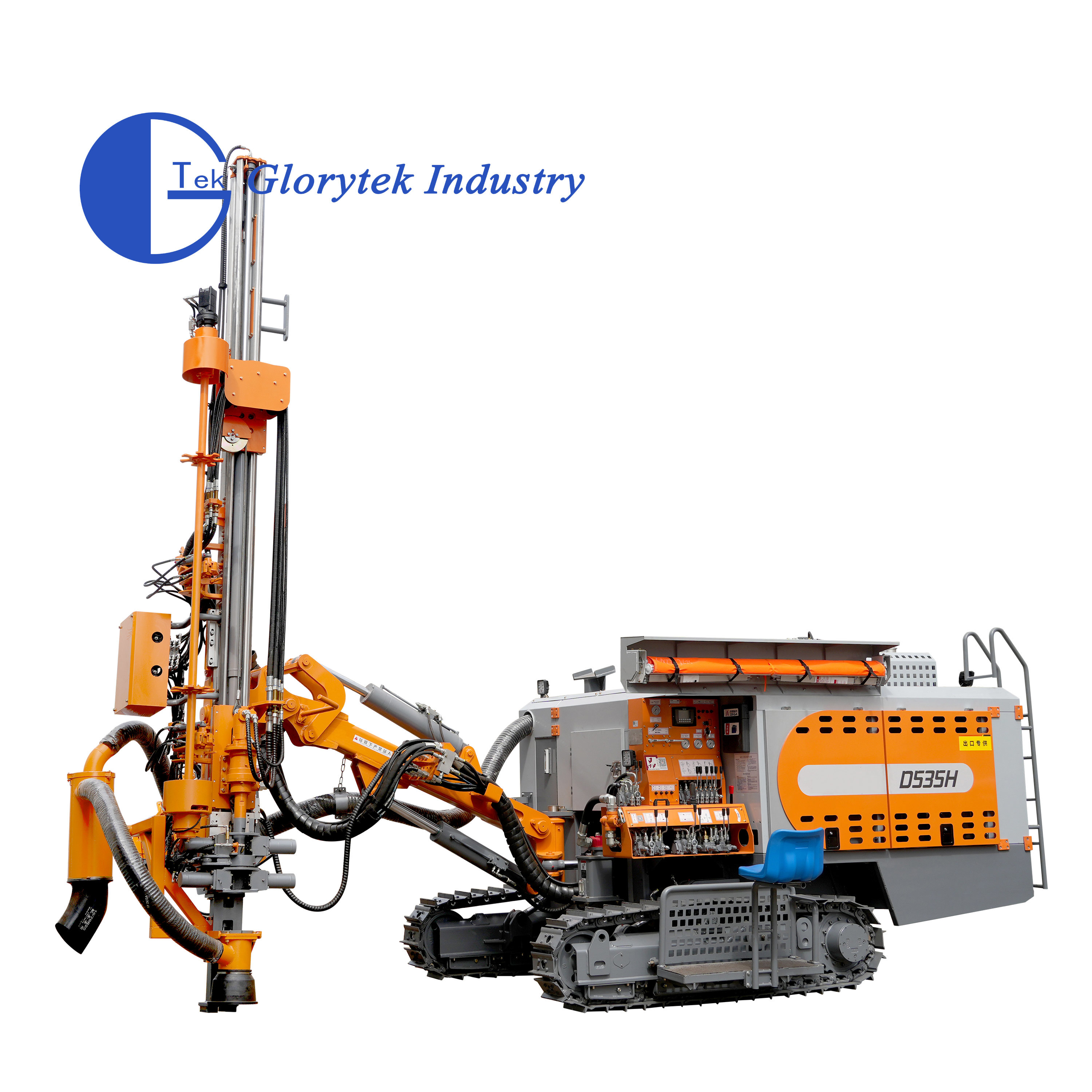

The D535H integrated down-the-hole drill is an upgrade on the basis ofwell-proven models, and the core hydraulic components are frominternationally renowned brands. With the single-powered screw aircompressor and hydraulic system, and the power output at peaks shift design,comparing with separate drill arrangement, the total power of the dieselengine is reduced by about 30%, and the maintenance cost is reduced by50%.The integrated design of the D535H solves the problems of air compressortransportation, air pressure pipeline loss and remote management, andimproves productivity.
Technical Parameter
|
Air working pressure:
|
18 bar
|
|
Air flow FAD:
|
12 m³ / min
|
|
Hole range:
|
Φ90 - 127 mm
|
|
Drill pipe size:
|
Φ60 mm
|
|
Drill pipe handling capacity:
|
6+1
|
|
Hole depth:
|
21 m
|
|
Feed total length:
|
6,100 mm
|
|
Feed extension:
|
970 mm
|
|
Feed force:
|
7.5 kN
|
|
Tramming speed.Max:
|
3.2 km/h
|
|
Hill climbing ability:
|
25°
|
|
Fuel tank capacity:
|
250 L
|
|
Carrier ground clearance:
|
340 mm
|
|
Track frame oscillation angle:
|
+/-10°
|
|
DTH hammer:
|
3.5 inch
|
|
Rotation torque:
|
1,500 Nm
|
|
Drill pipe length:
|
3,000 mm
|
|
Feeding:
|
Hydraulic cylinder - steel rope feeding system
|
|
Feed travel length:
|
3,400 mm
|
|
Feed rate max.:
|
0.88 m/s
|
|
Pull up force:
|
16.5 kN
|
|
Traction force:
|
96 kN
|
|
Weight(Options excluded):
|
8,630 kg
|
